layerAction

Performs an action on another layer.

Field Configurations

Key	Type	Description	Default Value
"params" (required)	Object	undefined	null

Parameters

Key	Type	Description	Default Value
"actions" (required)	Array	The list of action, that will be performed on the other layer.	null
"async"	Boolean	Specifies whether the action should perform asynchronously.	null
"layerName" (required)	String	The name of the other layer. (not the dataKey)	null
"location"	Location	Location inside the app.	null

Inherited

From Base Action

Base Action

Field Configurations

Key	Type	Description	Default Value
"dynamicParams"	Object	Dynamic params to retrieve data from a specific context e.g. a userSetting.	null
"leadingDelimiter"	String	The leading mustache delimiter to use.	null
"params"	Object,Array	Object containing the properties of the action.	null
"trailingDelimiter"	String	The trailing mustache delimiter to use.	null
"type"	String	Type name of the action.	null

Examples

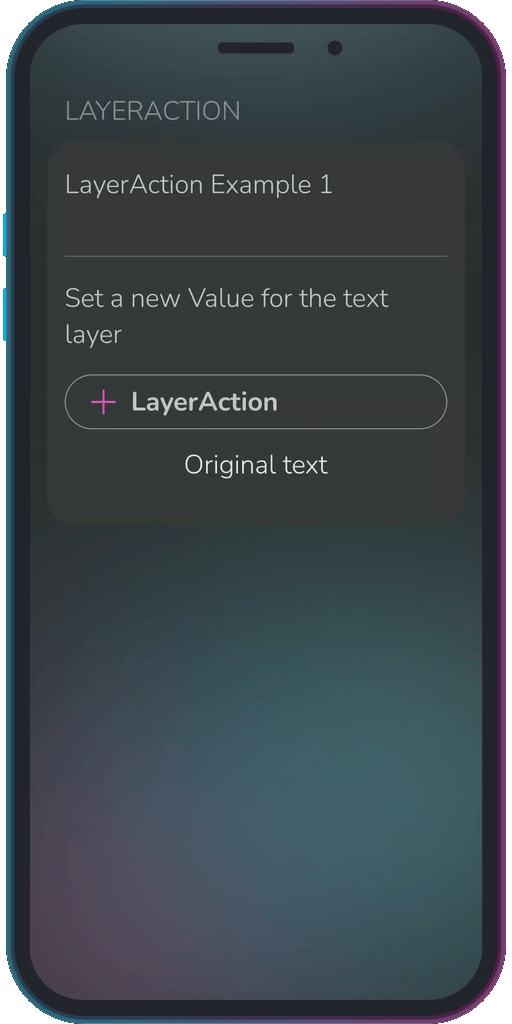

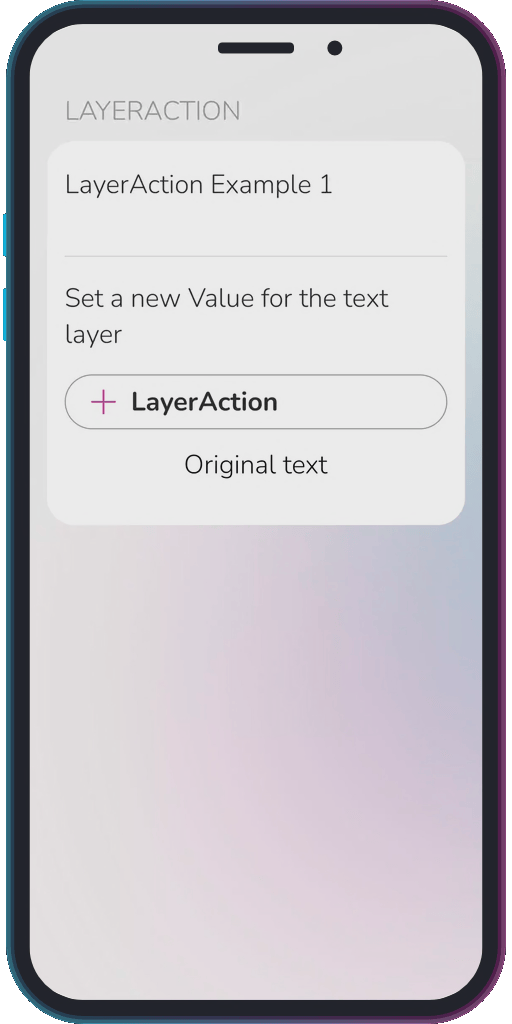

Example 1: Set a new value for a layer

Show ExampleHide Example

Set a new value for the text layer exampleText.

{
  "type": "layerAction",
  "params": {
    "layerName": "exampleText",
    "actions": [
      {
        "type": "setLayerValue",
        "params": {
          "value": "New Text"
        }
      }
    ]
  }
}
