setVariable

Stores the given value to a variable of the specified name.

note

Variables are available throughout the application (global) and stored in memory. They therefore only persist until the application is fully closed, at which point they are removed.

Field Configurations

Key	Type	Description	Default Value
"params" (required)	Object	undefined	null

Parameters

Key	Type	Description	Default Value
"async"	Boolean	Specifies whether the action should perform asynchronously.	null
"value" (required)	String,Object	The value of the variable.	null
"variable" (required)	String	The name of the variable.	null

Inherited

From Base Action

Base Action

Field Configurations

Key	Type	Description	Default Value
"dynamicParams"	Object	Dynamic params to retrieve data from a specific context e.g. a userSetting.	null
"leadingDelimiter"	String	The leading mustache delimiter to use.	null
"params"	Object,Array	Object containing the properties of the action.	null
"trailingDelimiter"	String	The trailing mustache delimiter to use.	null
"type"	String	Type name of the action.	null

Examples

Example 1: Set a variable

Show ExampleHide Example

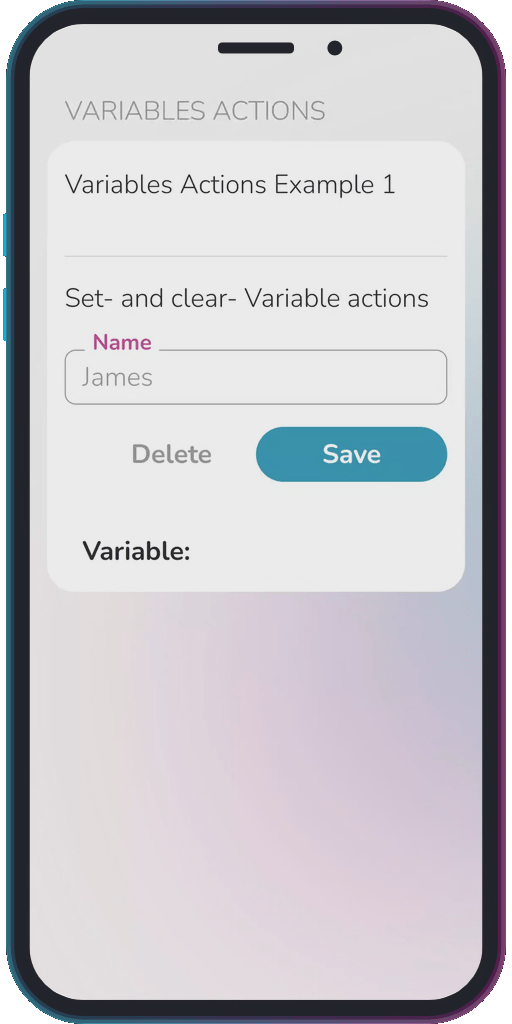

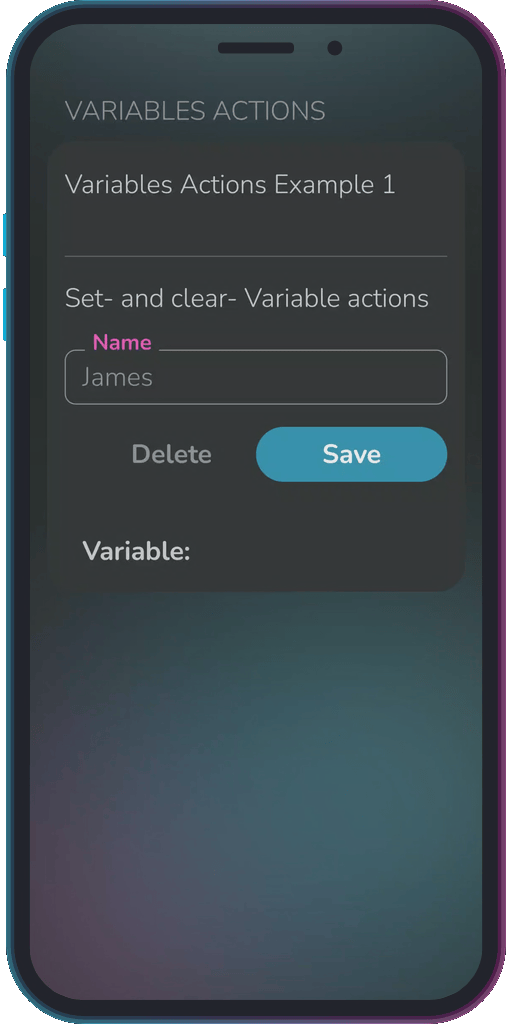

Set the value for the specified variable to the content of the textBox layer.

{
  "type": "setVariable",
  "leadingDelimiter": "{$",
  "trailingDelimiter": "$}",
  "dynamicParams": {
    "variableActions01Value": {
      "context": "form",
      "field": "variableActions01Value"
    }
  },
  "params": {
    "variable": "variableActions01Value",
    "value": "{variableActions01Value$}"
  }
}
