route

Displays a route in the default navigation app of the device. If an address exists, longitude and latitude will be ignored. If there is no address, both latitude and longitude is required.

Field Configurations

Key	Type	Description	Default Value
"params" (required)	Object	undefined	null

Parameters

Key	Type	Description	Default Value
"address"	String	The address to which you want to navigate.	null
"latitude"	Number	The latitude to which you want to navigate.	null
"longitude"	Number	The longitude to which you want to navigate.	null
"title"	String	(iOS only) Displays the title on the pin of the map.	null

Inherited

From Base Action

Base Action

Field Configurations

Key	Type	Description	Default Value
"dynamicParams"	Object	Dynamic params to retrieve data from a specific context e.g. a userSetting.	null
"leadingDelimiter"	String	The leading mustache delimiter to use.	null
"params"	Object,Array	Object containing the properties of the action.	null
"trailingDelimiter"	String	The trailing mustache delimiter to use.	null
"type"	String	Type name of the action.	null

Examples

Example 1: Navigate to a specific location

Show ExampleHide Example

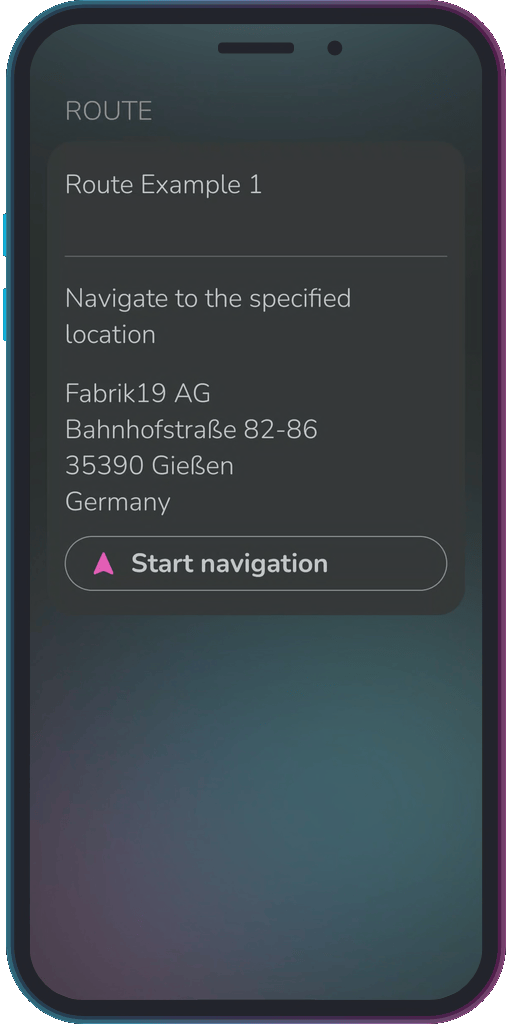

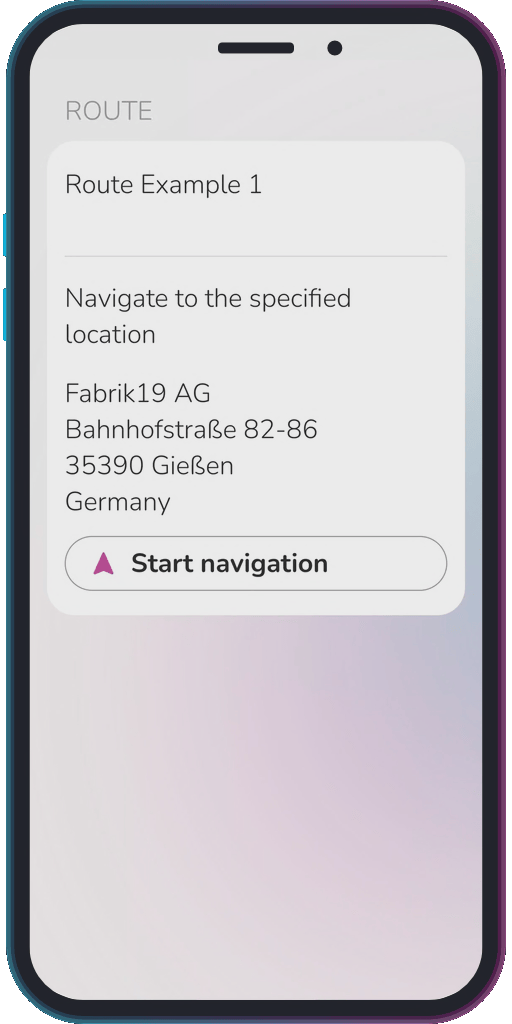

Navigate to the specified location using the device's default navigation app.

{
  "type": "route",
  "params": {
    "address": "Bahnhofstraße 82-86, 35390 Gießen"
  }
}
